Where does this go?????

[cmachala08]

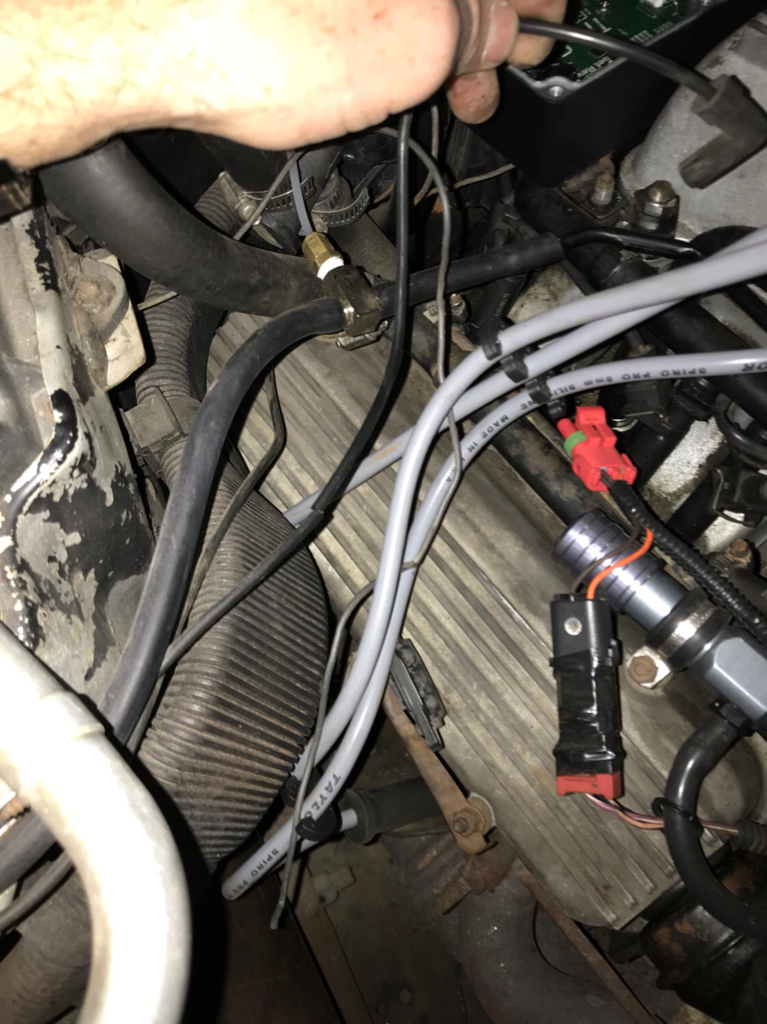

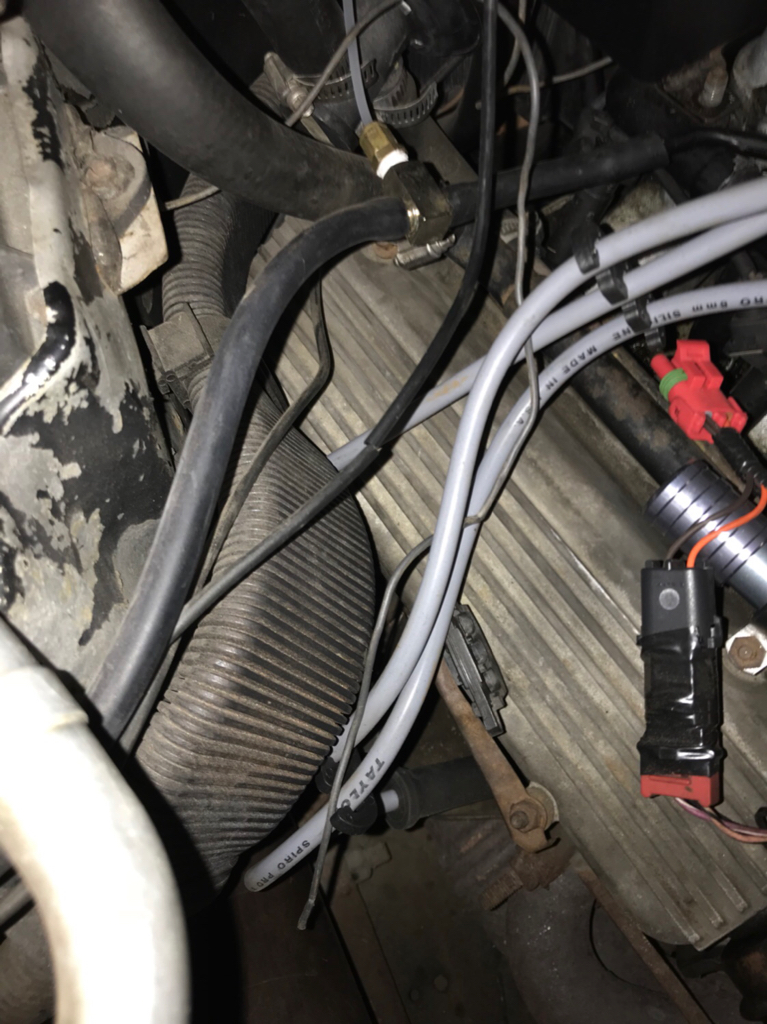

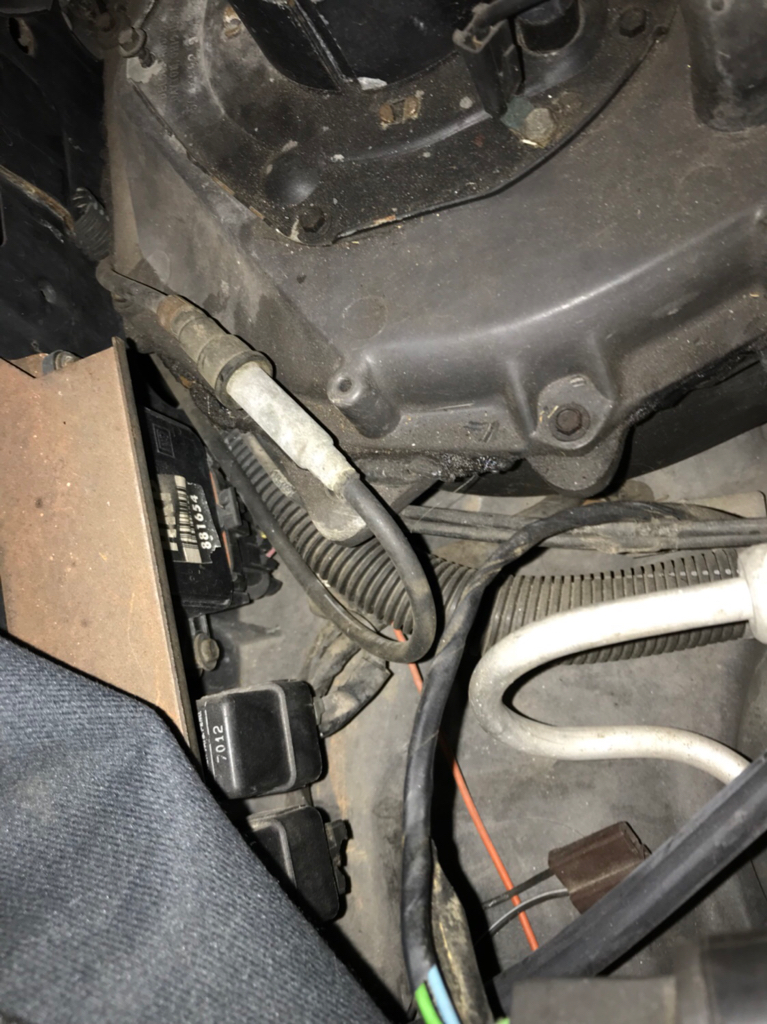

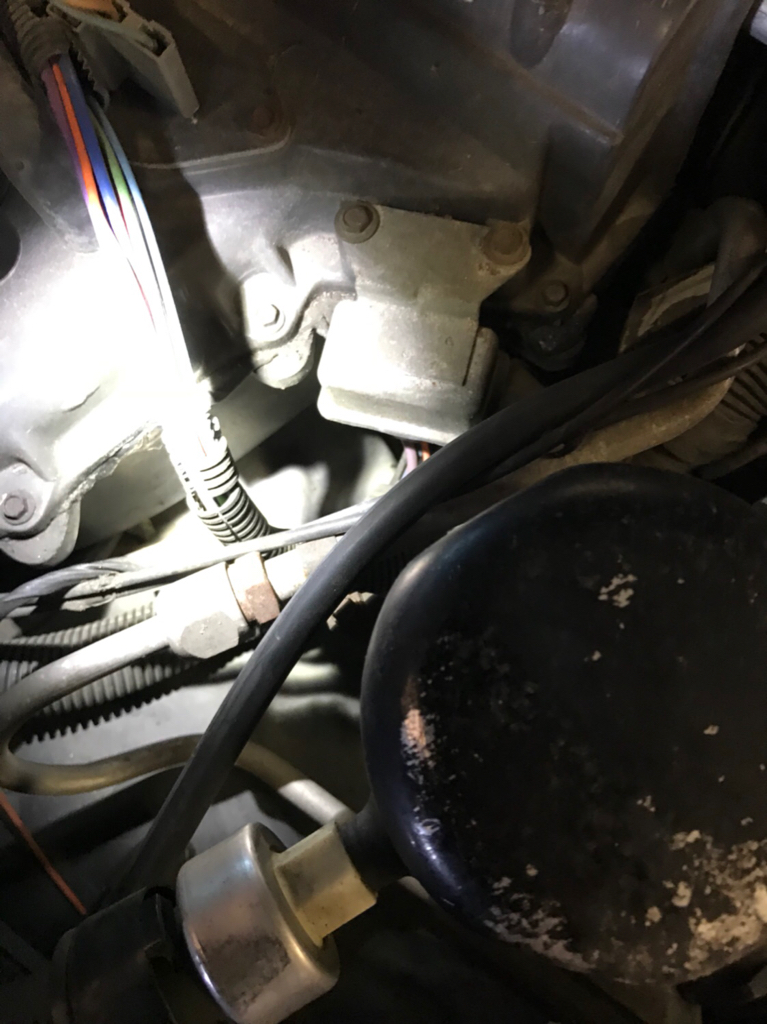

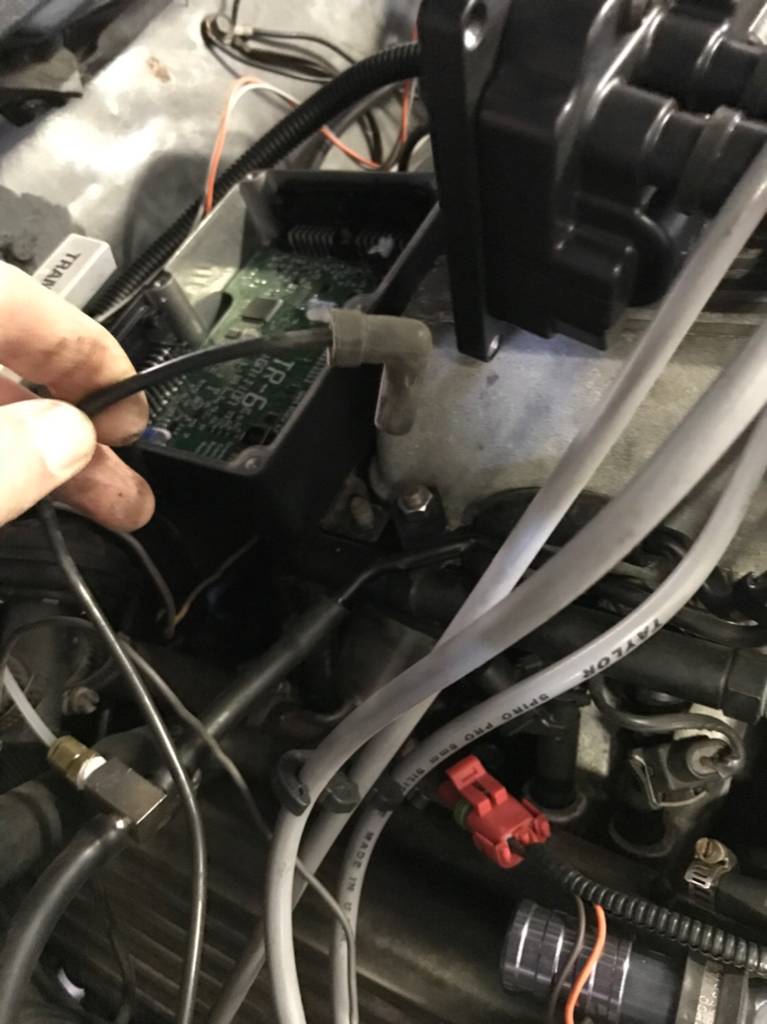

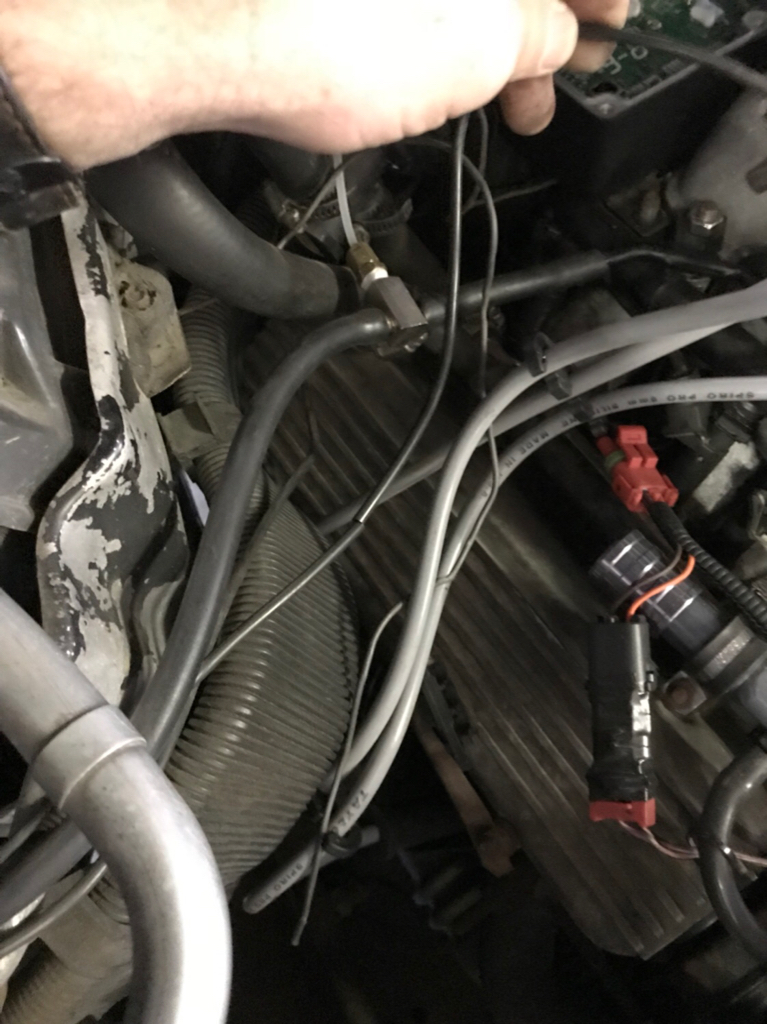

Alright guys, I’ve been chasing a miss at idle the last month or so. While messing around today I saw this vacuum line unhooked and have no idea where it goes (I also managed to break it while taking pictures). Can anybody tell me where it goes? Thanks for the help.

Sent from my iPhone using Tapatalk



[precizion818]

Either source for AC or heater control valve near the heater core


Sent from my iPhone using Tapatalk



[CGASTON]

Alright guys, I’ve been chasing a miss at idle the last month or so. While messing around today I saw this vacuum line unhooked and have no idea where it goes (I also managed to break it while taking pictures). Can anybody tell me where it goes? Thanks for the help.

Sent from my iPhone using Tapatalk

That vacuum line goes the your heater control valve.

Sent from my SM-G950U using Tapatalk



[ScottHeidinger]

Looks like it could be the stock map sensor connection for the boost gauge on stock dash that is probably not used anymore or it is the one that connects to the heater valve. It's kind of hard to tell from the pics.


Sent from my iPhone using Tapatalk



[CGASTON]

Looks like it could be the stock map sensor connection for the boost gauge on stock dash that is probably not used anymore or it is the one that connects to the heater valve. It's kind of hard to tell from the pics.


Sent from my iPhone using Tapatalk

Map sensor ran from the throttle body block to the map. That is the heater control valve vacuum. Vacuum line runs from the block into the car, the from the Sith back out to valve. That is why there are two line together coming from the pass fender firewall area

Sent from my SM-G950U using Tapatalk



[cmachala08]

It was the heater control valve. Thanks guys


Sent from my iPhone using Tapatalk



[Dhos1]

So.....did it fix your miss?



[cmachala08]

No it didn’t. The miss started when I installed my tr6 after my new timing chain. I think the cam sensor may be slightly off. I set it using Casper’s cam sensor tool per the instructions. I attempted to use the tr6 cam phasing mode but my tach is so out of calibration it was not usable. I may wire another one up just to make sure I do have the sensor set properly. I also put a fuel pressure transducer on and hooked up my laptop. I noticed when the miss would happen it looked like my fp would drop. This is with a freshly rebuilt accufab fpr. Could a slight drop in fp be the reason for the miss or a symptom of a miss?


Sent from my iPhone using Tapatalk



[CGASTON]

No it didn’t. The miss started when I installed my tr6 after my new timing chain. I think the cam sensor may be slightly off. I set it using Casper’s cam sensor tool per the instructions. I attempted to use the tr6 cam phasing mode but my tach is so out of calibration it was not usable. I may wire another one up just to make sure I do have the sensor set properly. I also put a fuel pressure transducer on and hooked up my laptop. I noticed when the miss would happen it looked like my fp would drop. This is with a freshly rebuilt accufab fpr. Could a slight drop in fp be the reason for the miss or a symptom of a miss?


Sent from my iPhone using Tapatalk

Make sure the tr6 has a good ground to the from or engine like the head

Sent from my SM-G950U using Tapatalk



[ScottHeidinger]

Make sure your cam sensor bolt is tight. I normally turn the engine over one turn and tighten the bolt again to make sure the sensor is seated all the way down.


Sent from my iPhone using Tapatalk



[Timdawg75]

Make sure your cam sensor bolt is tight. I normally turn the engine over one turn and tighten the bolt again to make sure the sensor is seated all the way down.


Sent from my iPhone using Tapatalk

Hello all I ahh just traded my 04 buttstang gt 4 a 84 gn in bad bad shape! It has a 87 intercooled motor in it but it seems to be running very rich! Check engine light comes on when the car is idling! I was looking around and it seems like alot of vacuum lines are broken and there are alot of plugs not hooked up! I'm not driving the car at the moment cause the Lear Siegler seats are garbage they also put a electric fan on the rad and removed the fan shroud so there's nothing holding the intercooler up besides the hose clamps on the pipes! I'm in over my head and starting to think this dream of mine is out of my budget! Sorry if I rambled I really was wanting vacuum line info!
