Wiper Motor Wiring Help

Discussion in 'Hot Air (non-intercooled) Tech' started by Boost231, Jul 5, 2017.

  1. Boost231

    Boost231
    Expand Collapse
    What's An Intercooler
    Staff Member

    Joined:
    May 26, 2001
    Messages:
    13,722
    Likes Received:
    422
    Online
    Need some help. Rewired the whole car and cant figure out the wiring for the wiper motor. Anyone have pictures of the wiring from the wiper motor to the bulk head connector on the firewall. Looking for the wire color and the pins it goes into the bulk connector. From all the charts i found i cant seem to figure it out. Only found 87 stuff

    Sent from my SM-G935T using Tapatalk

  2. Boost231

    Boost231
    Expand Collapse
    What's An Intercooler
    Staff Member

    Joined:
    May 26, 2001
    Messages:
    13,722
    Likes Received:
    422
    Online
    Anyone? Someone go outside and snap some pics for me please

    Sent from my SM-G935T using Tapatalk

  3. CzyKats44

    CzyKats44
    Expand Collapse
    Dis-Member

    Joined:
    Jun 28, 2014
    Messages:
    432
    Likes Received:
    72
    Offline
    Brent, I'm gonna pull my assembly this weekend because it wont pulse. I'll get some detailed shots of the wiring for you.

  4. RmvBfrFlght

    RmvBfrFlght
    Expand Collapse
    Well-Known Member

    Joined:
    Sep 28, 2007
    Messages:
    1,931
    Likes Received:
    91
    Offline
    This is for '85 pulse wipers. Connector C100 is the bulk head connector. Note that the wiper mount frame is grounded to the chassis. This is done by a small metal strap that goes around a rubber mount bushing and is held in place via the mounting bolt.


    RemoveBeforeFlight

  5. Boost231

    Boost231
    Expand Collapse
    What's An Intercooler
    Staff Member

    Joined:
    May 26, 2001
    Messages:
    13,722
    Likes Received:
    422
    Online
    Awesome, im not running the washer pump anymore. Just need to figure out the right ports to power the motor

    Sent from my SM-G935T using Tapatalk

  6. CzyKats44

    CzyKats44
    Expand Collapse
    Dis-Member

    Joined:
    Jun 28, 2014
    Messages:
    432
    Likes Received:
    72
    Offline

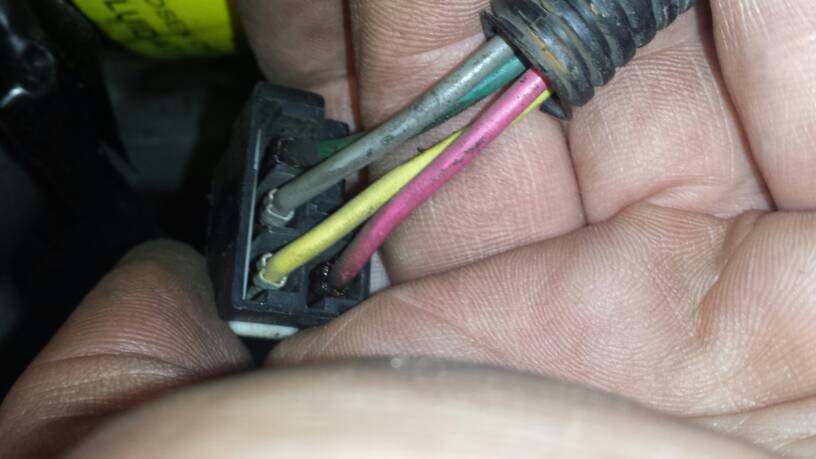

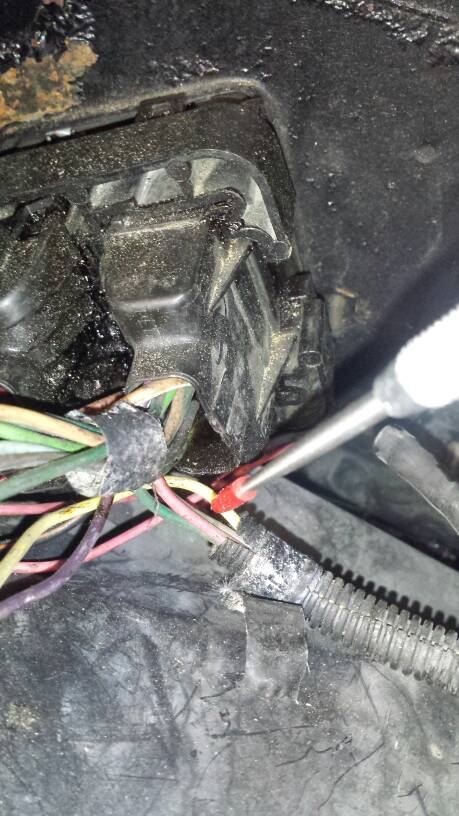

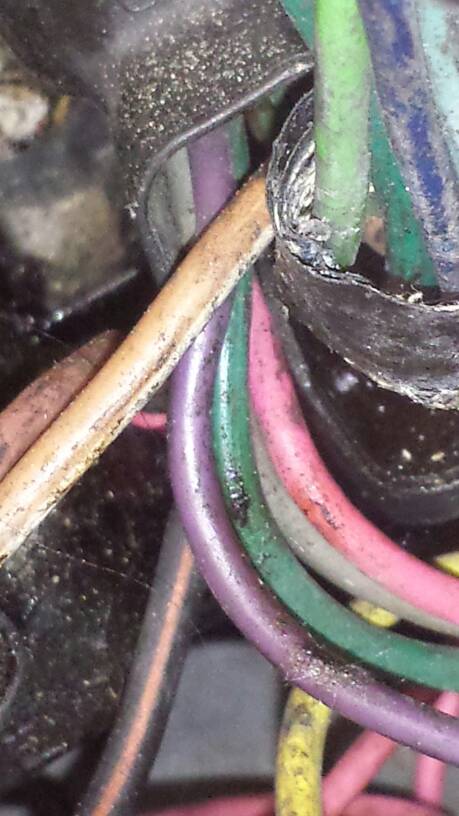

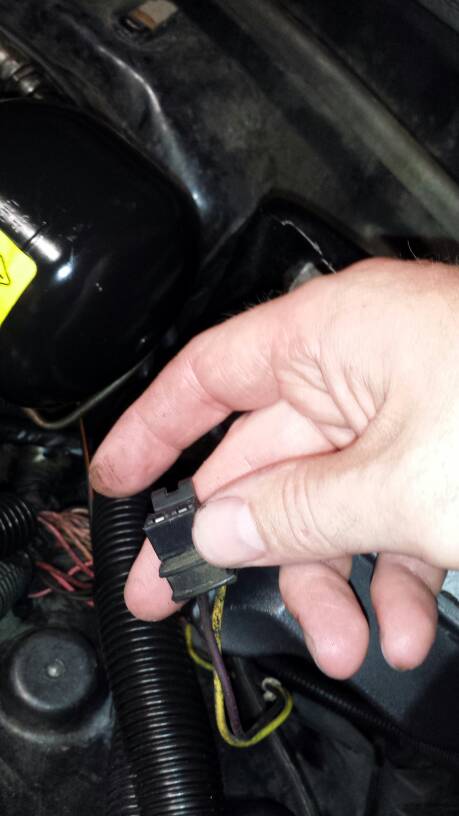

    Hope these help.[​IMG][​IMG][​IMG][​IMG]

    Sent from my SAMSUNG-SGH-I337 using Tapatalk

  7. CzyKats44

    CzyKats44
    Expand Collapse
    Dis-Member

    Joined:
    Jun 28, 2014
    Messages:
    432
    Likes Received:
    72
    Offline
    Confirmed. Vol 2, page 155

    Sent from my SAMSUNG-SGH-I337 using Tapatalk

  8. myfast70

    myfast70
    Expand Collapse
    Member

    Joined:
    May 4, 2007
    Messages:
    44
    Likes Received:
    4
    Offline
    CzyKats44,

    Where does the yellow wire loop around to? It looks like it looks forward somewhere along with the purple wire possibly? To windshield washer pump?

    Also, any pics of the other wiring connector that goes to the bottom of the wiper motor?

  9. CzyKats44

    CzyKats44
    Expand Collapse
    Dis-Member

    Joined:
    Jun 28, 2014
    Messages:
    432
    Likes Received:
    72
    Offline

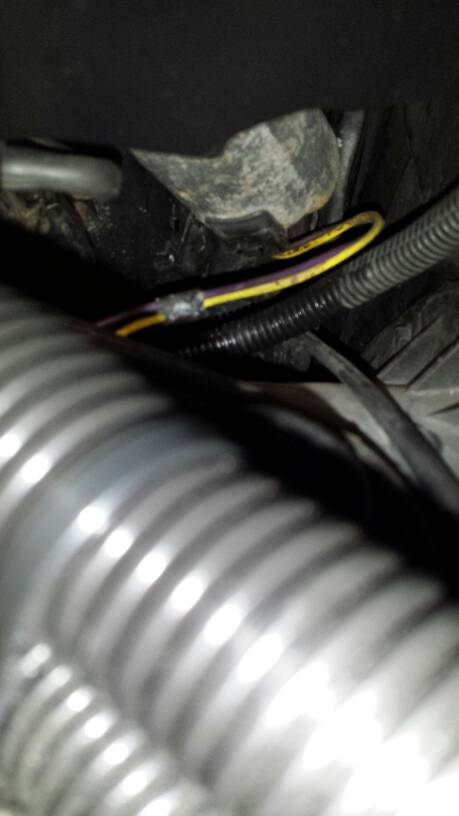

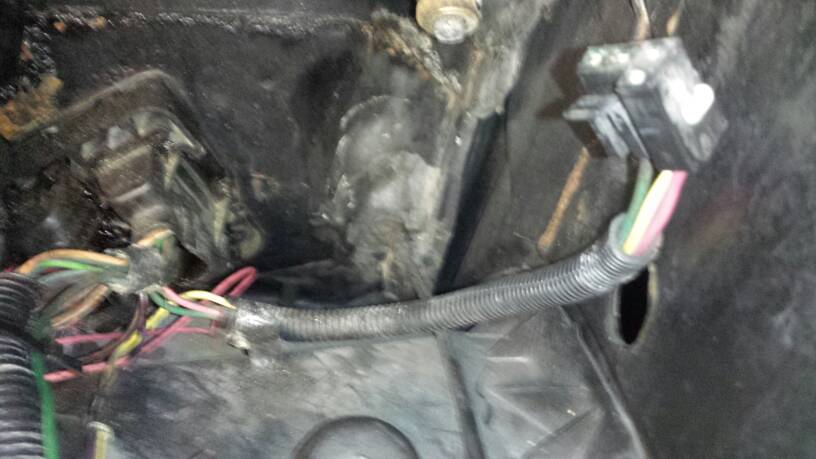

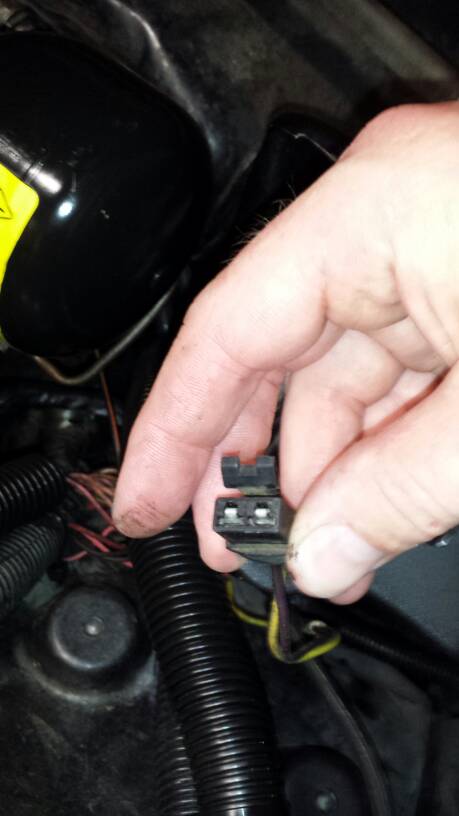

    Yup to the pump. It faces up when plugged. Hope these pics help.

    -Greg[​IMG][​IMG][​IMG]

    Sent from my SAMSUNG-SGH-I337 using Tapatalk

  10. myfast70

    myfast70
    Expand Collapse
    Member

    Joined:
    May 4, 2007
    Messages:
    44
    Likes Received:
    4
    Offline
    Thanks for the reply! I actually got it figured out after I made the post and didn't get a chance to edit it. I appreciate the prompt reply
