On-center vs Off-center - Production vs Stage 2

gnxtc2

Well-Known Member
Staff member
Joined
May 28, 2001
History (real brief):
It all began with an odd-fire motor which has a crank that 2 connecting rods share the same journal (like a small block Chevy). The odd fire motor fired at 90* and 150 * intervals, causing severe harmonics. The crankshaft rod journals were split 15* and the end result was the even-fire motor. The even fire motor fired every 120*. When the rod journal was split, it caused the rod to fall off-center of the piston pin.

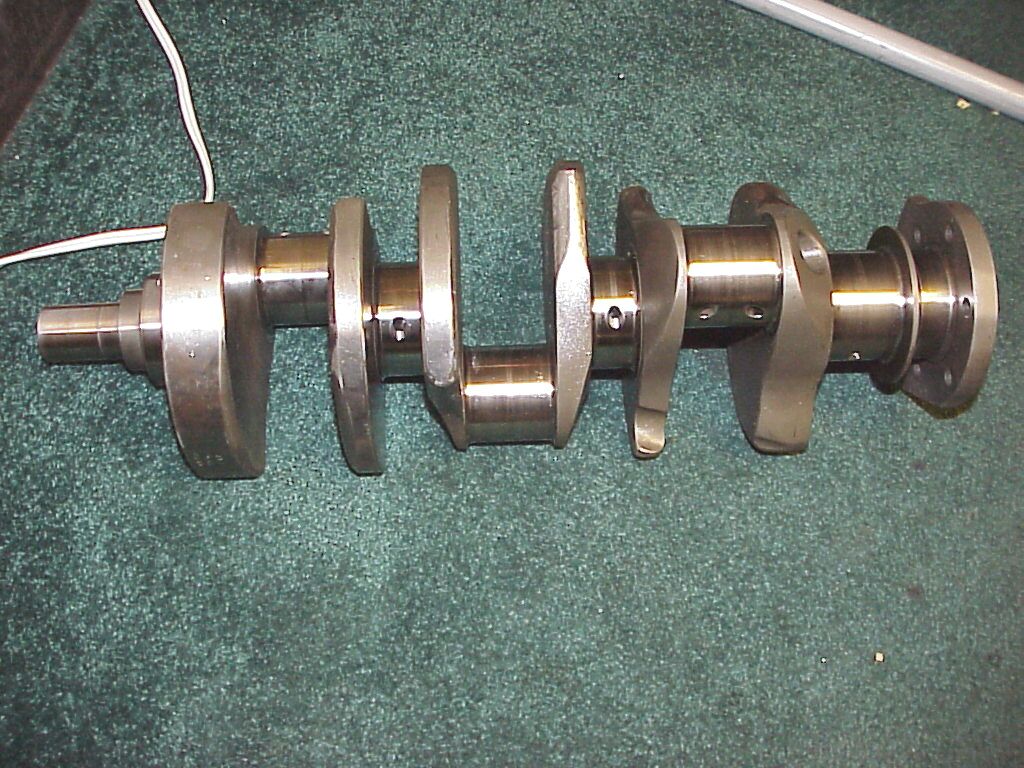

Odd fire crank:

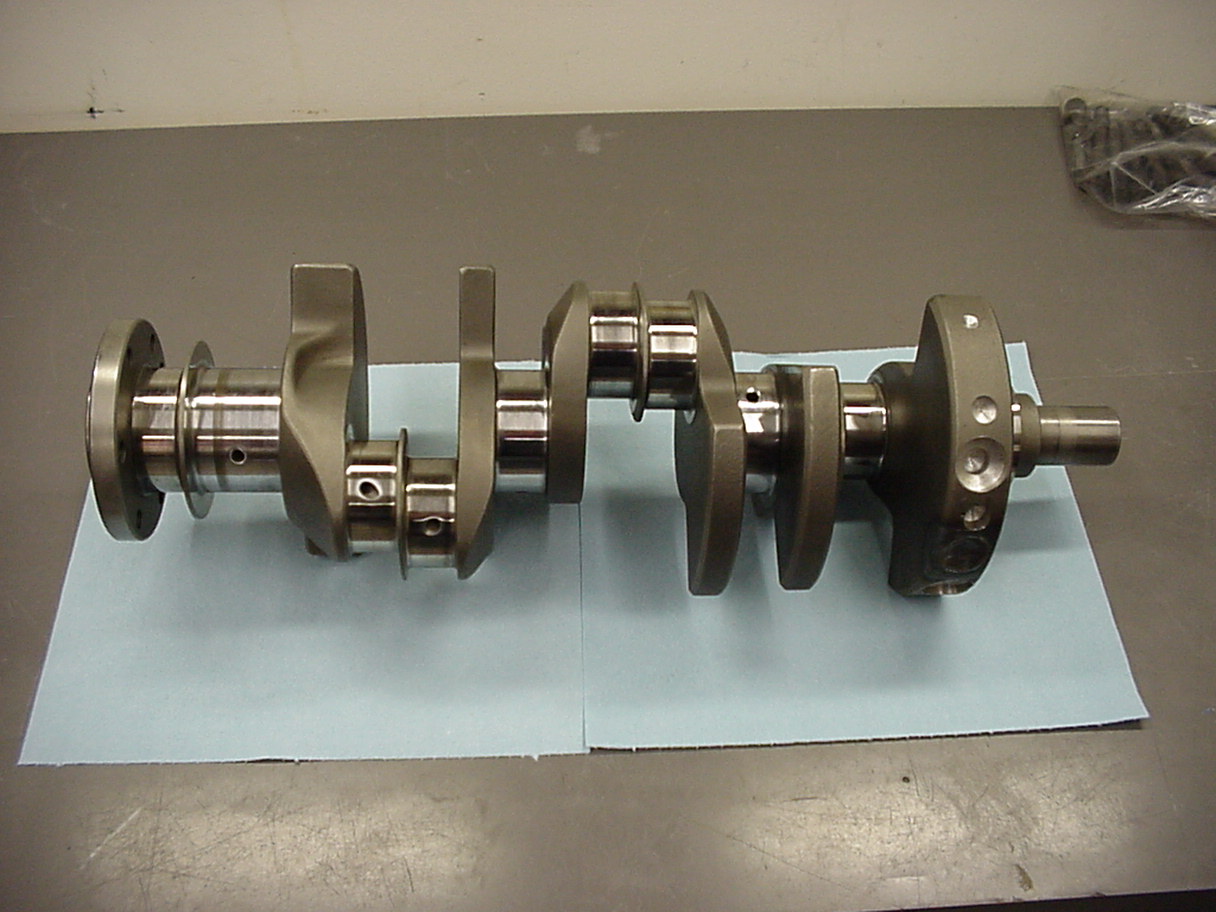

Even fire crank:


The on-center block was made to center the connecting rod on the piston pin. The difference between the blocks is the cylinder banks were shifted fore/aft approximately .120"-.125" to center the rod over the piston pin. When the banks were shifted, the crank, mains saddles, cam and lifter bores remained in the stock production location.

With the banks shifted, when the heads are fastened, they are also shifted. That means the stock/stock style intake, headers and rockers/lifters will not line up.

The stock "109" block is an off center block. A stock production block (off-center) has the connecting rod shifted to one side.

If you find a Stage 2 off-center block, you can transfer all the components from the "109" block over (I don't know why you would, but you could) :confused:

I'm not going to go into detail how to adapter off-center components onto an on-center block. Use the search feature, there is a ton on it.

Off-center pics
Notice how the journal is off center from the bore
29669d1181895675-official-noahs-mad-max-gn-complete-engine-build-2007_0614andenginepicstruck0041.jpg


Look at the rod's position on the pin
29858d1182313504-official-noahs-mad-max-gn-complete-engine-build-2007_0619engineschoolpics10087.jpg


On-center pics






Production vs Stage 2/TA Block (general differences)

The Stage 2 blocks have:
- Increased main cap fasteners: BMS blocks have the four bolts holding the center caps, they're either splayed or cross bolted. It also might have a cross-bolted front cap. The TA block has the 4 fasteners on the first cap (regular&crossed bolted) and the other three have 6 fasteners (regular, splayed and cross bolted)

- Increased head fasteners (8 vs 14)

- Better oiling

- Thick webs, cylinder walls - just a beefier block

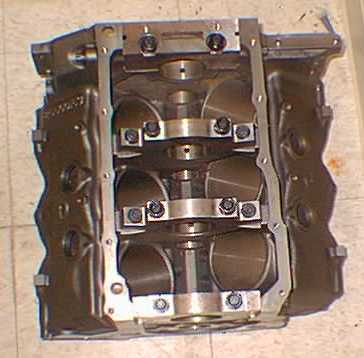

On-center Buick block (bottom):

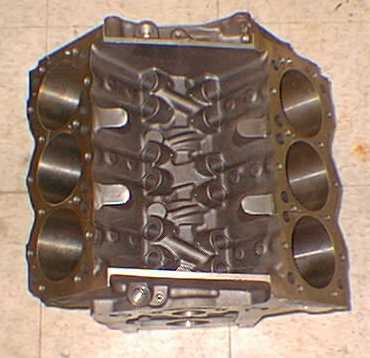

On-center Buick block (top):


TA Block (Bottom):


Stage 2 head fasteners (TA Block pictured):





The experts say that the on-center block could handle more power due to the centered rod. The off-center could handle around 1250HP and the on-center around 1600HP. The higher HP cars use an on-center version. Have a bad tune, it's going to be a bad day with either version.


Hope this helps.

I going to leave this thread open for others to add. If this thread goes off in a tangent, the posts will deleted and the thread locked.


Billy T.
gnxtc2@aol.com

Hey Billy didn't Anderson have an off center block in his mid 7 second car? Maybe im wrong but I could have sworn he did. Nice little write up btw.

Good info Billy. I'd say lock it and make it a sticky. This gets asked enough that it would be good to have on top.

On & off-center rod

Here is a pics of an on & off-center Carrillo rod. You can clearly see the beam is off-center of the crank bearing to help center the load created by the center of the cylinders not being centered over the crank bearing. As more power is being applied this off-set starts to creat complications to the rod and bearing. Mike


Attachments

  • MVC-029F.JPG
    55.4 KB · Views: 2,736
Is this a Double-Off-Center engine; or a speed trick that has been kept from me?

How about this!! The bottom rod looks be in backwards and thats why its not lining up in the center of the piston boss:eek: If thats a speed secret , I dont think it will last tooo long!!! Mike:cool:

something is not right

How about this!! The bottom rod looks be in backwards and thats why its not lining up in the center of the piston boss:eek: If thats a speed secret , I dont think it will last tooo long!!! Mike:cool:

If you flip the bottom rod--that puts the small end closer to the piston. Looks to me like the top rod is on backwards. Unless I'm missing something.

If you flip the bottom rod--that puts the small end closer to the piston. Looks to me like the top rod is on backwards. Unless I'm missing something.

Closer look now that Im awake , I agree with you Lee. Somethings not quite right there!! Mike:rolleyes:

Maybe it's just the way the picture was taken. Things don't always look right in really close pictures like that.

Here's what my present project looks like. As you can see the rod's beam when properly installed is moved toward the direction of the split between the two rods.


Attachments

  • 100_0751.jpg
    83 KB · Views: 1,945
Maybe it's just the way the picture was taken. Things don't always look right in really close pictures like that.

Here's what my present project looks like. As you can see the rod's beam when properly installed is moved toward the direction of the split between the two rods.

these rods are not in the center of the pistons

The pics posted by gntxc2 are correct. The big end is higher on the bottom of the crank than the top if you look carefully. If the rod was in backwards it would have no gap at all on the one side of the piston. The aftermarket rods/pistons are wider at the pin locations, thats why it appears to have installed wrong, but it isn't.

does this look about the same, im just tring to find out if I can use these rods like this with no problems


Attachments

  • IMG_1068.jpg
    45.1 KB · Views: 1,765
Those look like a set of ATR rods. I have a set and have used them without issue. They actually are in-between off-center and on-center and have about a .030-.040 offset in them, but some only had about .007 offeset, they were all over the place. I posted on the board they are selling a product that is really not a true off-center item them before they went out of business, and they emailed me back saying that I was extorting them over the internet and never was able to get a refund.

Power source say the stage 1 blocks have the same oiling passages as a production blocks. Where the stage 2 (even tho stage 1 and 2 are the same casting) have priority main oiling drilling. Has anyone verified the stage 1's are indeed like the production oiling strategy?
