Ms3pro Evo install

dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Hello everyone one in the turbo buick community. I am starting a ms3 pro install in my turbo Buick . I’ve been wanting to remove all my old stock wiring . I have had electrical issues ever since I have purchased the car so hopefully this will cure that issue . So I will be wiring this ms3 up without using the stock ignition module. This requires me to wire the cam and crank sensor directly in to the MS3 . I will also need to use a 1k resistor or a pull-up resistor on the crank signal in order for the signal to be read by the ms3. I have also purchased a new set of ignition coils the good expensive IGN-1A coils as well as some new high impedance 210lb/hr injectors. That is the main difference between the MS3pro ultimate and the MS3pro Evo . The ultimate cam run low impedance injectors where the evo would need a resistor box in line with the injector wiring in order to run low impedance injectors. I will be running a flex fuel sensor to run on ethanol. I also added on a WiFi adapter that will allow me to connect to the MS3pro wireless which is pretty cool . I will try and update this thread as I go because I know there isn’t very many turbo Buick’s that are running a MS3pro Evo or ultimate. They do have a nice plug and play unit for our cars but that would be running through the stock wiring which is what I wanted to replace. And just so everyone knows I am far from a professional when it comes to wiring or tuning with this system. I am learning as I go along and if I can do it I’m convinced that the average mechanically/electrically inclined person can tackle this install .


Attachments

  • 39C70C3A-9781-43A5-B24B-DCD51865A125.jpeg
    3.1 MB · Views: 37
  • E40B0A07-7362-4B7A-8600-A640FC2AB701.jpeg
    3.6 MB · Views: 38
  • 0B2D6470-3C99-4546-A4C6-F412591BB6D9.jpeg
    3.7 MB · Views: 39
  • BE14BFC9-8231-4B1A-919B-B388FD32B7B6.jpeg
    1.6 MB · Views: 38
  • E6A8FE36-E839-4A4F-8549-BABDA0455327.jpeg
    3.3 MB · Views: 41
  • 1F6F0776-17F6-4F0E-8E9B-4799F1EB3C1E.jpeg
    110.3 KB · Views: 35
  • 1C0686A6-9DDF-4C47-91B6-A3FA9D92EA52.jpeg
    3.1 MB · Views: 36
  • 9D6189D8-7112-44B7-AB2C-3E090F5D89F0.jpeg
    3 MB · Views: 38
  • DDBE2BD1-2654-4084-B8F5-A066D656568F.jpeg
    2.7 MB · Views: 36
  • 887F8F71-83FA-4C4B-8015-968CAEE80B75.jpeg
    2.5 MB · Views: 37

dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Acouple more pics . I have also upgraded my 140amp alternator to a 200amp unit. .i also have found a egt amplifier for a lot cheaper then the ones you would get ready to go . I paid $40 each . That gives me 8 k type egt inputs with 8 0-5vdc outputs


Attachments

  • E4B700E6-A4D9-400D-B313-FB2CB5C6DAF8.jpeg
    583.2 KB · Views: 32
  • 5F301B58-D39E-4B0F-8E3D-58559DD87938.jpeg
    136.8 KB · Views: 35
  • 1E6771F3-F926-4B7A-80BA-0050B1D5C3C3.jpeg
    110.3 KB · Views: 36

dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Okay so I got my coils in the mail today aswell as my EGT amplifier. I made a new fuel injector harness and have straight alternator power coming in to them through 2 separate legs that will power the 2 separate banks . Now I’m working on the ignition wiring .


Attachments

  • 2E1E3DFE-DCCF-48D8-9EBC-DF43010101E2.jpeg
    3.1 MB · Views: 28
  • 901F2B42-A581-41E9-89EF-A22827F90F78.jpeg
    3.4 MB · Views: 29
  • 8F02DC20-7407-4388-B005-4364667DA655.jpeg
    2.4 MB · Views: 29
  • A5BA69FB-921B-4C16-803B-C93F2AEFDC2A.jpeg
    2.3 MB · Views: 26

dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
So I made a ignition sub harness for my ING-1A ignition coils . I had bought a 12 pin connector and ran the ecm signal and the ecm ground through the connector. Then I have 12vdc going to each bank and a head ground going to each bank


Attachments

  • 1E0C98B5-46A7-45CA-8175-C85588105230.jpeg
    2.3 MB · Views: 17
  • 25847D6E-C83C-4F4B-A35C-7E7DA38A0C5F.jpeg
    2.5 MB · Views: 19
  • 29AF5644-2592-43D6-A571-70AFEB247B54.jpeg
    3.1 MB · Views: 18

Squid4life

Well-Known Member
Joined
Jul 5, 2004
Lookin’ good brother, keep at it. Love watching the progress. Glad you found some bonehead to buy up your Stage stuff so you could keep your build going. Lol


dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Lookin’ good brother, keep at it. Love watching the progress. Glad you found some bonehead to buy up your Stage stuff so you could keep your build going. Lol
Yea I’m still packing all that bone heads stuff up sorry for lagging I’ve been busy with my real job and I’m in the middle of clearing out the garage and I might have found another set of valve covers if u are interested.


dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Here is acouple pictures of the coils mounted to my valve covers and acouple with them installed


dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Got my IGN-1a coils wired up
With the firing order of 1,6,5,4,3,2,


TexasT

Texas, Where are you from
Joined
Sep 10, 2002
Any more progress? I've been looking at something for mine but these bust my budget currently. Though I have been reading up on ecu and tuning and watching YouTube vids on the subject.

Here is a link to the megasquirt forum for those interested.


dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Any more progress? I've been looking at something for mine but these bust my budget currently. Though I have been reading up on ecu and tuning and watching YouTube vids on the subject.

Here is a link to the megasquirt forum for those interested.

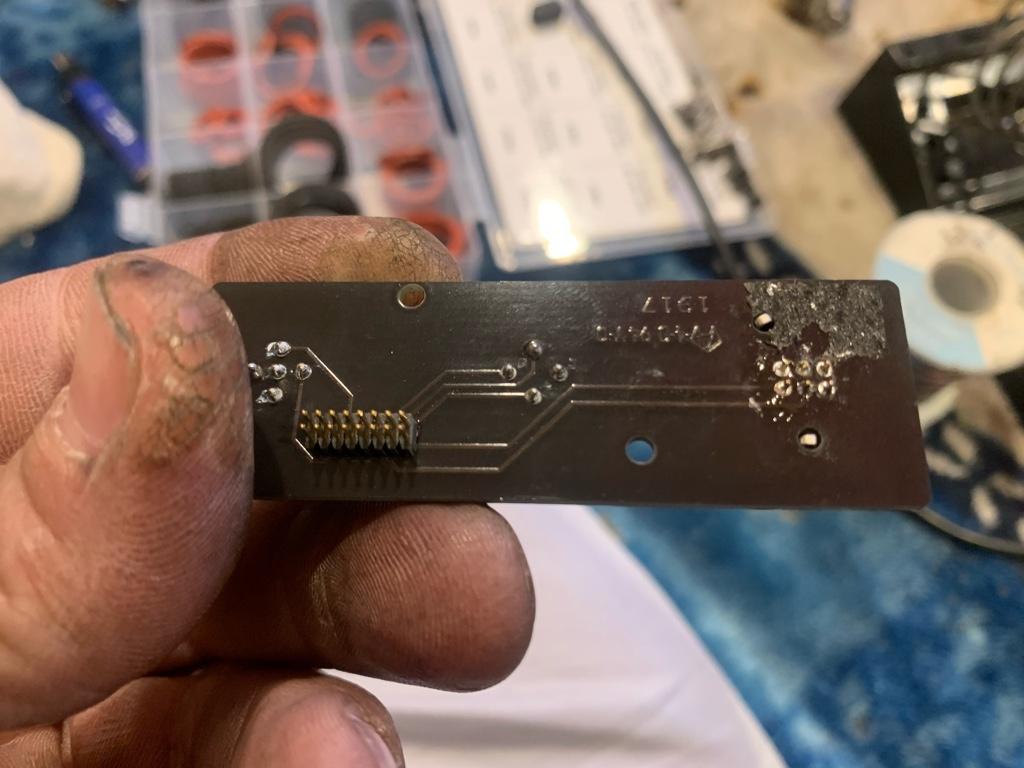

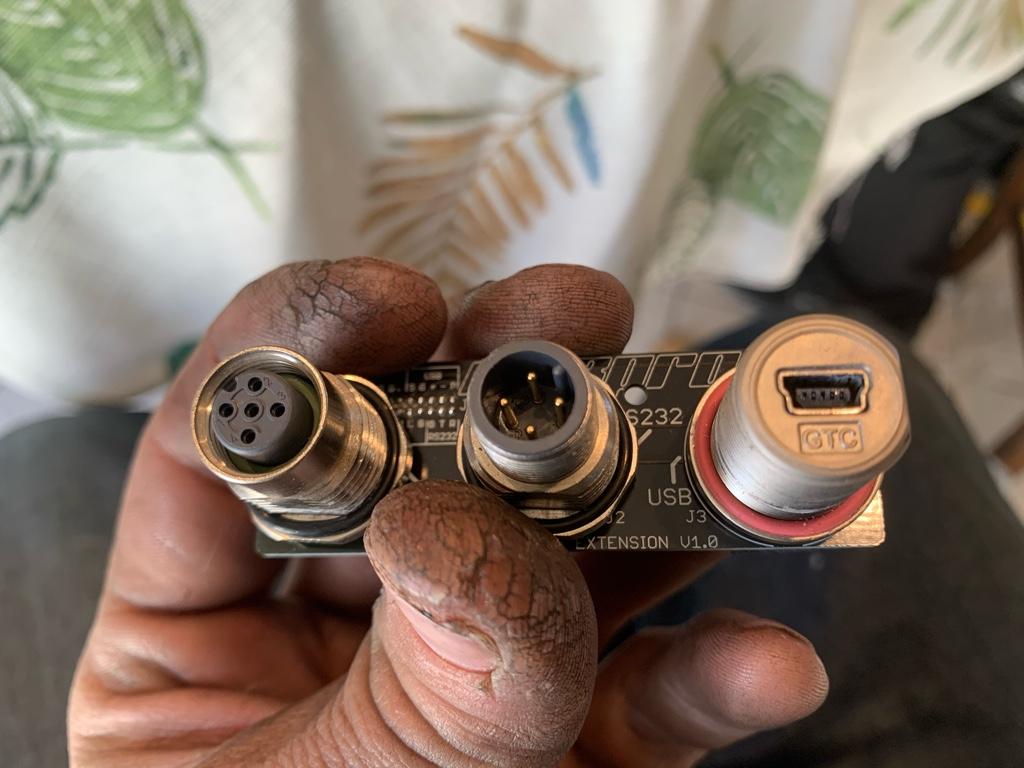

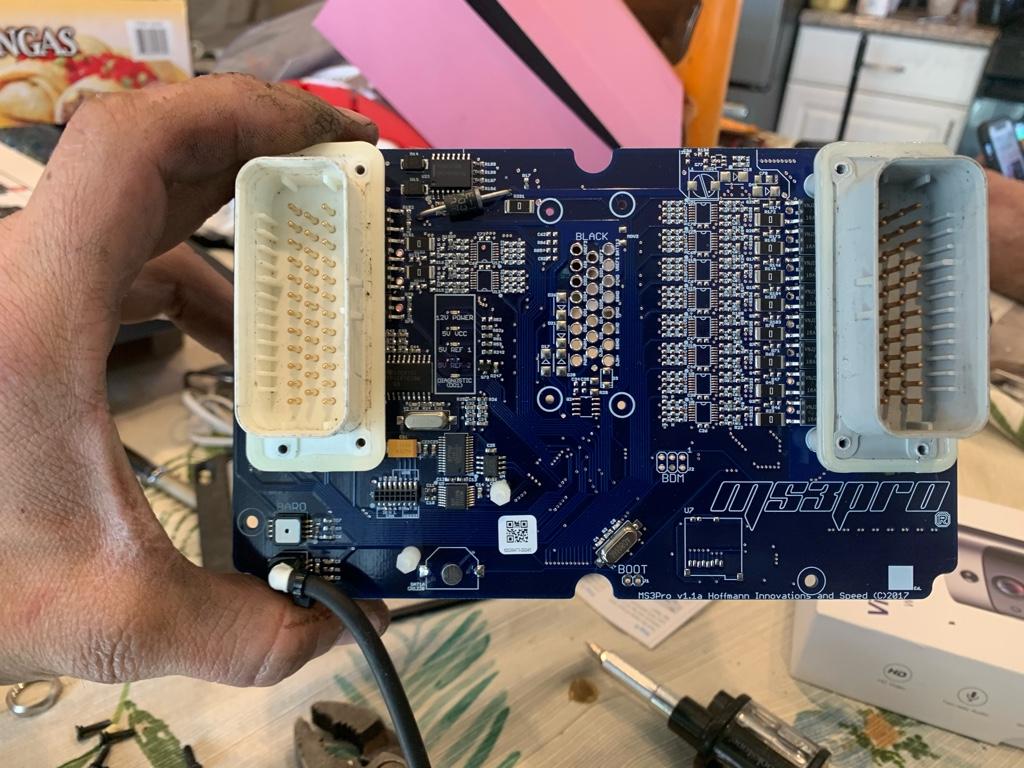

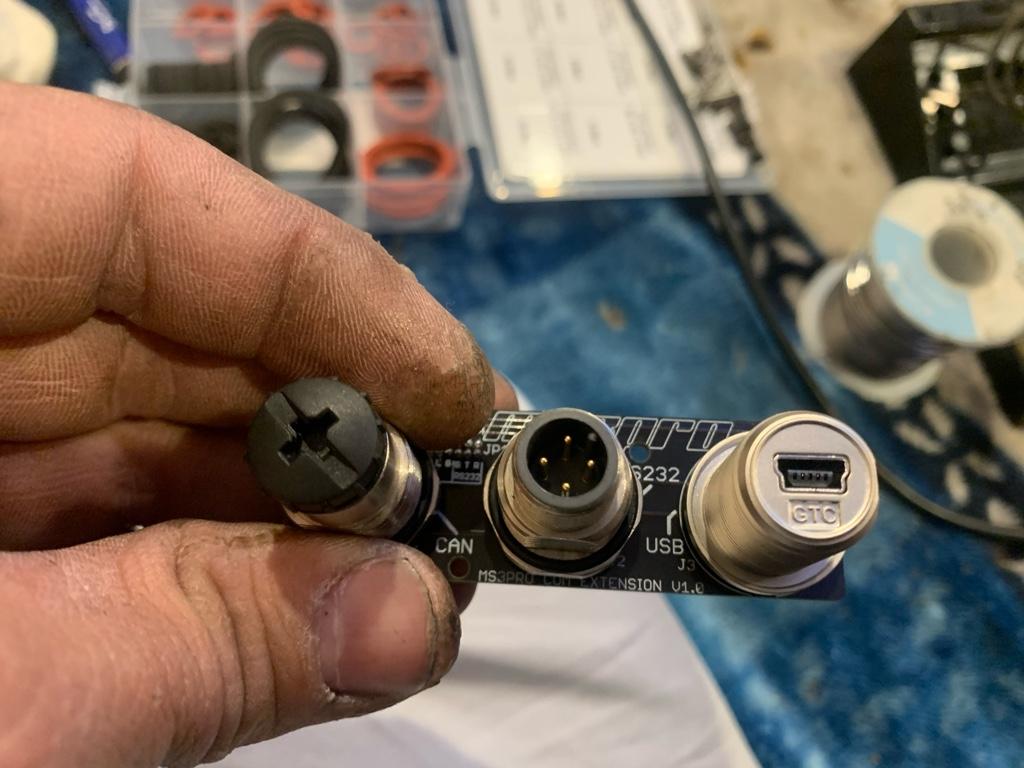

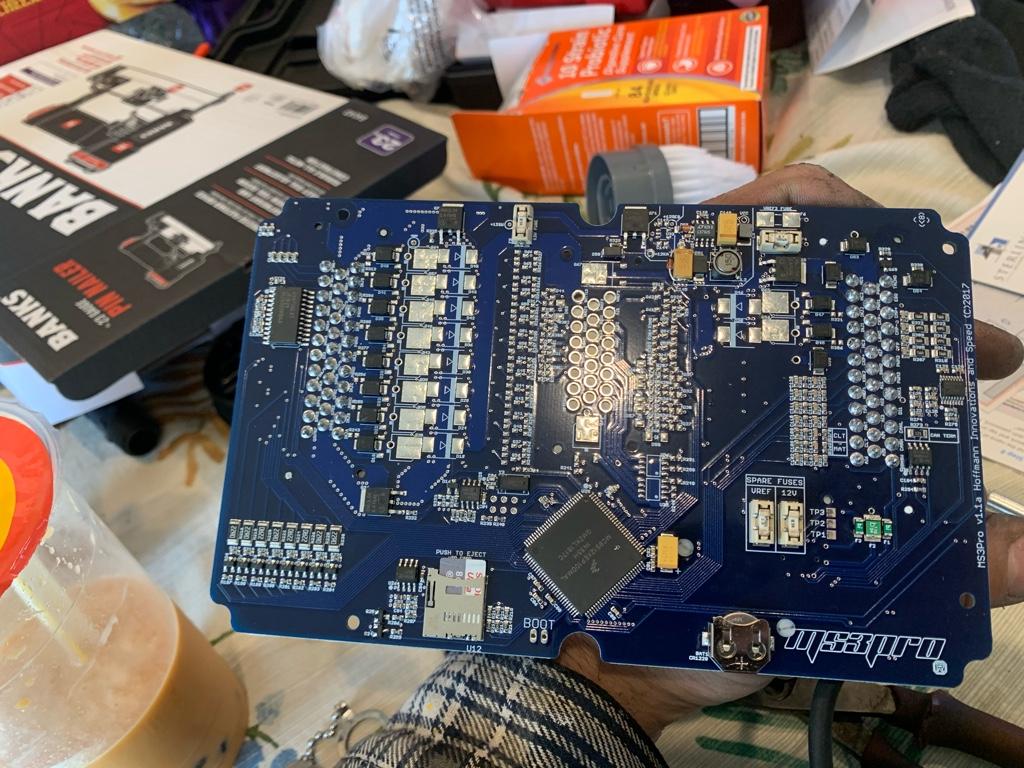

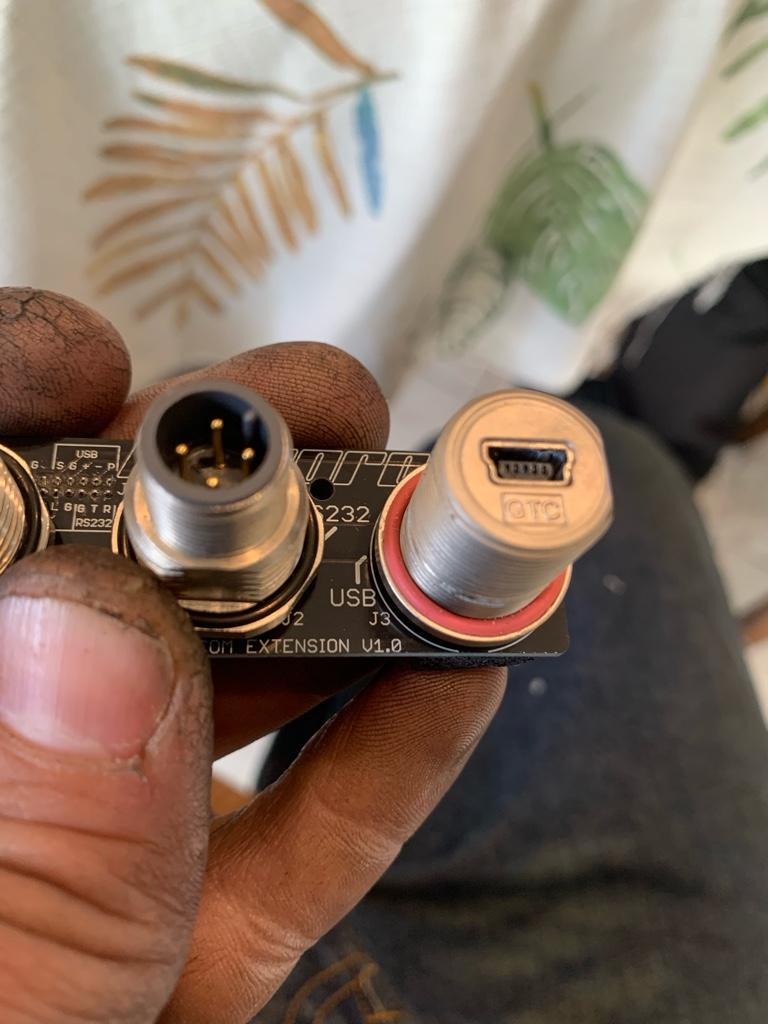

Hey bud sorry I haven’t updated in awhile. So I recently had some issues with my MS3pro Evo . I couldn’t connect to the ecm . We had some rain in Southern California and after inspecting the usb connector on the MS3pro I noticed some water corrosion on the insiders the connector. So I ordered another connector and installed it . So now my laptop would identify the ecm and give it a port number in my device manager but still the ecm would not communicate with my laptop . So I arranged to send it back to amp efi . They received it and discovered that my serial monitor was messed up . Luckily it was just a software issue that they where able to fix without replacing abunch of internal parts . I should be receiving it back today all fixed and ready to go . Here is some pictures of the water damage and the connector I replaced



Sent from my iPhone using Tapatalk


ShawnR

Fixer of crap..
Joined
Jan 24, 2011
Is there any way to fix the missing pictures from earlier posts? This is stuff that I really want to be able to see!


dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Is there any way to fix the missing pictures from earlier posts? This is stuff that I really want to be able to see!
yea ill try and re post them . i dont know why it does that with pictures . there is a bunch of posts that would be great sources of information but the dam pictures that help greatly are MIA.


ShawnR

Fixer of crap..
Joined
Jan 24, 2011
SWEETNESS! I have a bunch of questions that I should PM, but I"m going to post them in case others are in the same boat.

The "hardware" side of my build is pretty much done. I just unboxed my MS3ProEvo today and installed the software on the PC. Firmware is upgraded (v1.5.1), but that is about it. I plan to get it running on the stand first, then swap into the car.

What little box are you using to get your 5V source?
Any specific reason you made your own injector harness instead of using a stock one?
Did you have a tune to start with or did you start from scratch?
You find any really good websites that helped you get started? I'm an IT guy, but this is all new to me.


andreib

New Member
Joined
Feb 1, 2021
Эй, приятель, извини, что я давно не обновлялся. Так что недавно у меня возникли некоторые проблемы с моим MS3pro Evo . Я не мог подключиться к ecm . У нас был небольшой дождь в Южной Калифорнии, и после осмотра usb-разъема на MS3pro я заметил некоторую коррозию воды на внутренней стороне разъема. Поэтому я заказал еще один разъем и установил его . Так что теперь мой ноутбук будет идентифицировать ecm и давать ему номер порта в моем диспетчере устройств, но все равно ecm не будет связываться с моим ноутбуком . Поэтому я договорился отправить его обратно в "амп Эфи". Они получили его и обнаружили, что мой серийный монитор был испорчен . К счастью, это была всего лишь проблема с программным обеспечением, которую они смогли исправить, не заменив множество внутренних деталей . Я должен был бы получить его обратно сегодня, все исправлено и готово к работе . Вот несколько фотографий повреждения водой и разъема, который Я заменил


Привет, друг! могу ли я получить эти фотографии в несжатом формате? Если возможно, напишите Мне. Спасибо!
Отправлено с моего iPhone с помощью Tapatalk


andreib

New Member
Joined
Feb 1, 2021
Hey bud sorry I haven’t updated in awhile. So I recently had some issues with my MS3pro Evo . I couldn’t connect to the ecm . We had some rain in Southern California and after inspecting the usb connector on the MS3pro I noticed some water corrosion on the insiders the connector. So I ordered another connector and installed it . So now my laptop would identify the ecm and give it a port number in my device manager but still the ecm would not communicate with my laptop . So I arranged to send it back to amp efi . They received it and discovered that my serial monitor was messed up . Luckily it was just a software issue that they where able to fix without replacing abunch of internal parts . I should be receiving it back today all fixed and ready to go . Here is some pictures of the water damage and the connector I replaced



Sent from my iPhone using Tapatalk
Hello friend! can I have these photos in a non-compressed format? If possible, write to me. Thanks!


dank GN

BlackArts Automotive (661)993-8277
Joined
Jan 11, 2009
Hello friend! can I have these photos in a non-compressed format? If possible, write to me. Thanks!
Not really sure what you mean . But if you shoot me a message I can try and get you some pics u are looking for


andreib

New Member
Joined
Feb 1, 2021

Attachments

  • d85d70dffa01fbc601d3f8823432c917 (1).jpg
    d85d70dffa01fbc601d3f8823432c917 (1).jpg
    156.6 KB · Views: 38
  • ee0cd31ffb3370763d9f430d8cb3b5a2 (1).jpg
    ee0cd31ffb3370763d9f430d8cb3b5a2 (1).jpg
    149 KB · Views: 43
