Got Bored v6 engine cradle

Hotfoot

Active Member
Joined
Jan 1, 2016

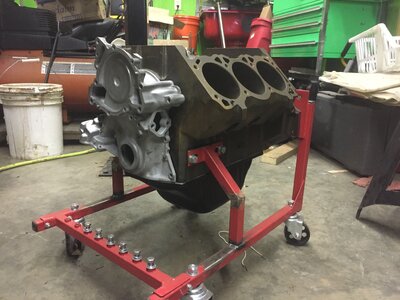

Got tired of the 4.1 sitting on the ground so I got a sbc engine cradle and modded it for my v6.

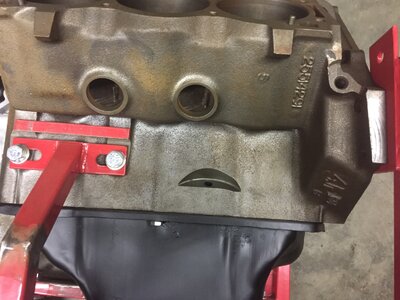

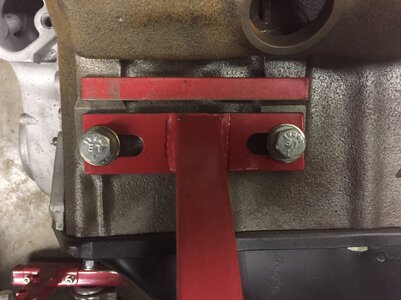

Cut 1/2” off top of front mount to clear block and elongated holes 1/4” for mount bolts

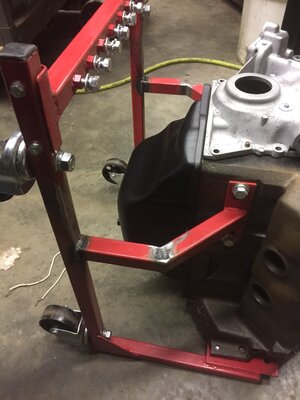

Cut front legs off flush with bottom of bar

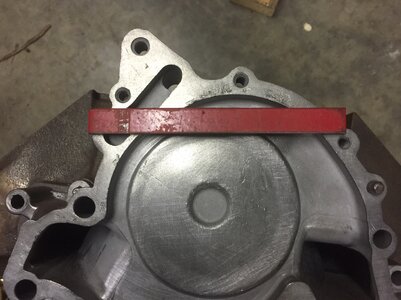

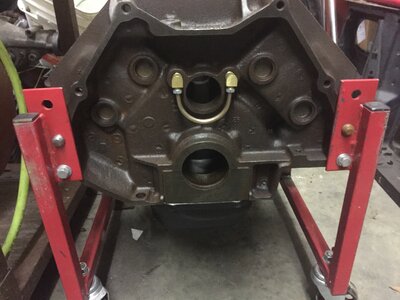

Bolted front legs to block and bolted block to cradle, got framing square and marked for vertical cut and total width. Cut off maybe 1” from bottom of leg and welded together for a nice addition to the garage.
