Crank sensor for Stage 2 front cover

turbobitt

Well-Known Member
Does anyone know what bracket was used on a BMS Stage 2 cover to mount the crank sensor?
AG



Sent from my iPhone using Tapatalk


turbo89

Well-Known Member
I’m talking about whatever bracket was used to fit the factory crank sensor to read the factory pickup ring on the pictured cover.
AG


Sent from my iPhone using Tapatalk


I believe Fabrication will be your option,

Dimensions are in the Power source book


turbobitt

Well-Known Member
I don't think that's the one for the cover I have but I did find this picture in my collection that looks more like something that would work but don't know what or where it is from.
AG.

So, what are you putting on the crank snout? The sensor will have to 'mate' with the wheel; either a harmonic balancer, a toothed wheel, or a windowed wheel like the one on my Indy engine (shown in my pic). Your pic shows a harmonic balancer with a magnetic stud. Are you using that?


turbobitt

Well-Known Member
I will be using the stock style windowed wheel. The picture above is a hub with the similar window features. What you think is a magnet stud is just a shadow or clean spot among the rusty metal. I've seen some older stock 4 wire sensors that look similar and was wondering what application they are.
AG.

  • 31kR1YjF2JL.jpg
Click to open expanded view

ACDelco

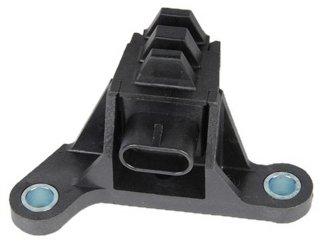

ACDelco 213-151 GM Original Equipment Engine Crankshaft Position Sensor
15 customer reviews





Price: $48.79 | FREE Same-Day

Get $70 off instantly: Pay $0.00 upon approval for the Amazon Prime Rewards Visa Card.
Note: Available at a lower price from other sellers, potentially without free Prime shipping.

In Stock.


Get it TODAY, Nov. 16. Order within 4 hrs 16 mins and choose Same-Day Delivery at checkout. Details
Ships from and sold by Amazon.com.









  • GM-recommended replacement part for your GM vehicle’s original factory component
  • Offering the quality, reliability, and durability of GM OE
  • Manufactured to GM OE specification for fit, form, and function
See more product details


turbobuick

Well-Known Member
Staff member
I’m talking about whatever bracket was used to fit the factory crank sensor to read the factory pickup ring on the pictured cover.
AG


Sent from my iPhone using Tapatalk
Did you find a pic or the answer to this? I am getting ready to fab a sensor PU for a S2 cover


steve hughes

Active Member
Chris i milled out and did some welding on a Stage II cover so i could use the stock sensor and bracket. I'll try to remember to get some pictures tomorrow.


turbobuick

Well-Known Member
Staff member

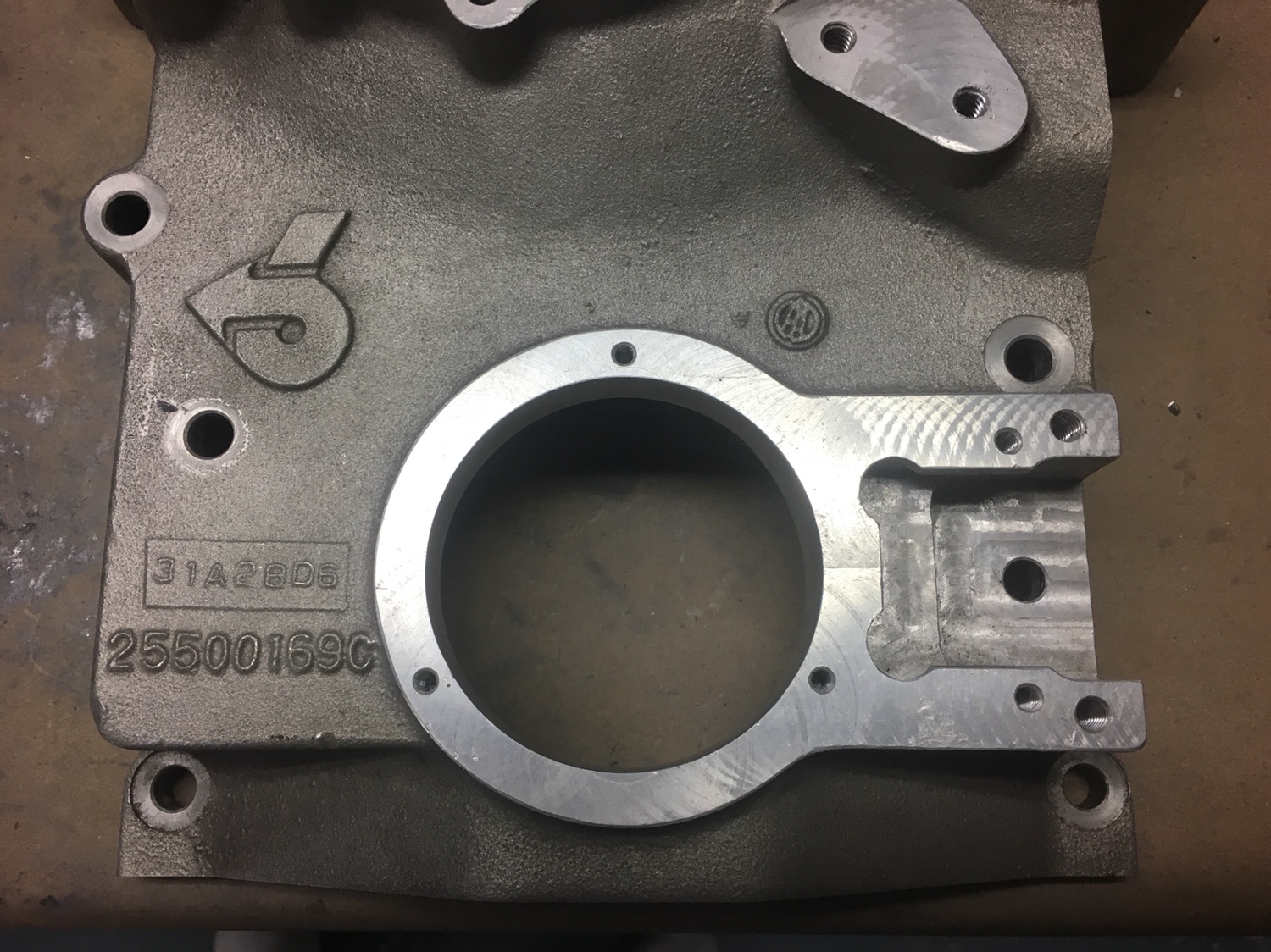

Here is my final solution to crank sensor for a S2 front cover on a S2 on-center with prod Stage 1 heads. Innovators west LSX 12-1 flying mag trigger wheel machined to fit ATI balancer with Holley hall effect pick up and Innovators West drivers side LSX bracket HIGHLY modified. MSD cam sensor plug for a BB Chrysler modified by Glenn at Mad Racing.




turbobuick

Well-Known Member
Staff member
Turbobuick where did you purchase that an thermostat fitting? I need one of those.
Lol, I found it in a box of stuff in my attic. I honestly don't know who made it but it is a nice one piece fitting. I also have one of the Champion adapters that is threaded with 1" NPT to screw a fitting in. If you need it send me a DM.
