Connector identification

spross86

Member

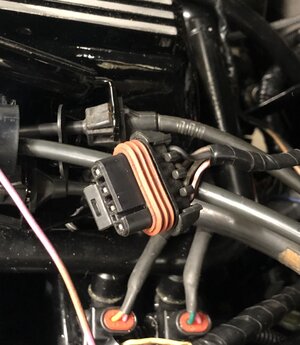

Can anyone tell me what the connector is and where it plugs into? Just installed the new motor but I can’t find what it’s for?
Colors are Black-Brown-Graypink with black tracer.
Thanks


Attachments

  • 1E4A76F1-1800-4BFB-9C31-2664EE3102D2.jpeg
    656.7 KB · Views: 22
  • 90F5BBDA-E01D-4ED4-8B35-199124A48E38.jpeg
    881.7 KB · Views: 21
  • DD19F448-987A-417B-91C8-D348C1E1CD8B.jpeg
    974.8 KB · Views: 21

GoldHawg

Active Member
Ok gurus, can you ID both this three wire connector and the vacuum operated something on the passenger side fender?


Attachments

  • IMG_4402.jpeg
    274.4 KB · Views: 18

pacecarta

LOGGED OUT
Staff member
thats for a map sensor for the led boost gauge on the analog cluster , the vac cannister is actually a boost switch and turns on the boost lights in the digital dash cluster and should have a plastic vac line that runs to the steel line at rear of plenum that runs up to the vacuum block at the top of throttle body
on analog cars that 3pin map sensor is dead because theres no connection to the dash at the c100 connectors
